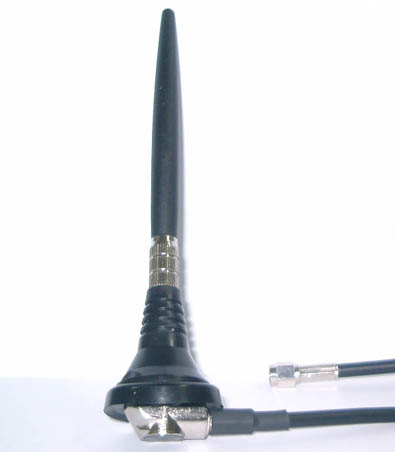

Car Roof Screw Mount antenna for 915MHz or GSM Penta Band 824-960/1710-1990/2170MHz, 3dBi

Availability: In stock

Model number: E160

Part no.

Antenna height

Frequency

SW-16A-915

140mm

915MHz Single band

SW-16A-GSM

140mm

GSM 824-960/1710-1990/2170MHz

Inquiry
Quantity

Electrical:

  • Type: Screw Mount【Car Roof】
  • Frequency:
    915MHz Single Band, or
    824-960/1710-1990/2170MHz (GSM Penta Band)
  • VSWR: ≤2.0
  • Impedance: 50ohm
  • Gain: 3dBi
  • Radiation: Omni
  • Electrical wave: 1/2
  • Polarization: Vertical
  • Max Power: 10W

Mechanical:

  • Antenna height: 140mm
  • Operating temp.: -30 to +70 degree
  • Storage temp.: -35 to +75 degree

Mounting

  • Screw Mount

Pigtail Cable and connector:

  • RG58 3meter (OEM length is welcome)
  • Connector: SMA, MCX, MMCX, BNC, FME, SMB, CRC9, TS9 and TNC...etc
  • Or cutting open end

Made in Taiwan

OEM and ODM orders are welcome

Compliant with RoHS Directive
