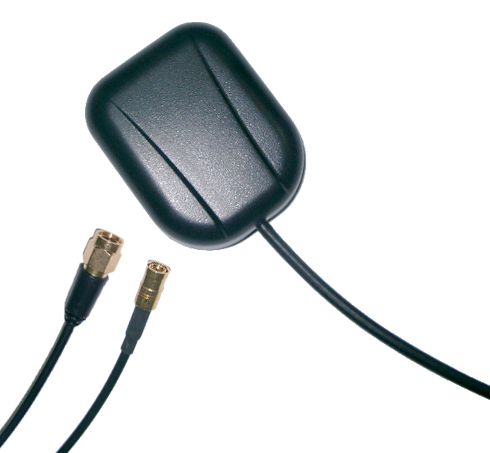

General

2 Stages active LNA

Dual Filters, (HPF & LPF(lump element))

+28dB gain

Architecture Design

Dielectric Patch antenna

Low Noise Low drop-out, Linear Regulator

GPS receiver short circuit protect

Low Loss RG/174 Coax cable

Aluminum Base/ PC+ Radome Plastic

Performance

Receiving Frequency

L1 Band(1575MHz)

Output Impedance

50 ohms

Polarization¡¦s

Right Hand Circular (RHC)

Bandwidth

10dB Mhz @ -3dB point

VSWR

1.5 Typical @ 1575MHz

Elev. Angle Coverage

5~90 degree

Az. Bearing Coverage

360 degree

Filterin

Dual(BPF

Over-all Gain

28dB (typical including 4dB cable loss & Filters)

Over-all NF

LNA Characteristic

K=>1 Un-conditionally Stable

RF Insertions loss

0.1dB, leakage power 100mW /1 watt input

Power Consumption

5 to 11mA (max)

Power Input Sensor

Reverse Polarity Short Circuit shutdown

Over-Current Sensor

Thermal Over-current shutdown >+150degreeC

Physical

Dimensions

44 x 34 x 12mm +/-0.5mm

Mount

Magnetic

Radome Color

Black

Coax Connector

BNC, SMA, SMB, MCX, MMCX, GT-5

Coax Cable

RG-174U double shielded 5m, Low Loss 0.7dB/m

Environmental

Operating emperature

-30 to + 85 degreeC

Storage

-40 to + 90 degreeC

Option

OEM Hardware

1. Open Frame Antenna , with RF shield

2. Open Frame with 3¡¨ Flanges & RF shield

3.Ant + Aluminum Base

Electrical

Power Input

+2.5Vdc to +12Vdc input, AutoSwitch

Weight

0.094kg
