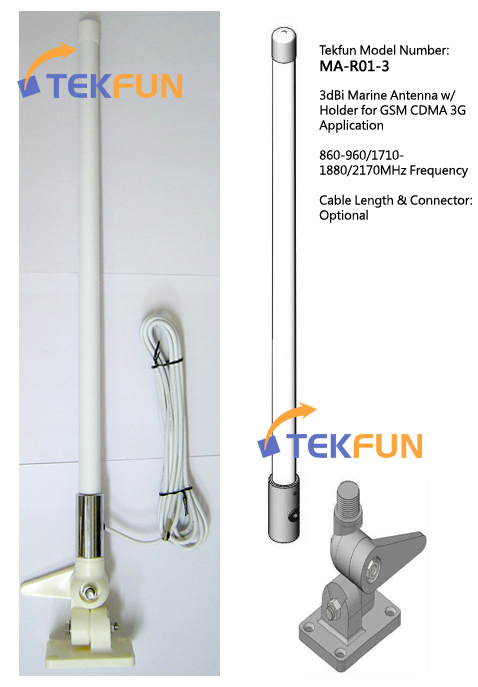

3dBi Marine Antenna w/ Holder for GSM CDMA 3G Application 824~960/1710-1990/2170MHz

Availability: In stock

Model number: E358

Part no.

Size

Frequency(MHz)

Connector

MA-R01-3

597mm

824~960/1710-1990/2170

SMA, FME, N…etc (Optional)

Inquiry
Quantity

Electrical:

  • Frequency Range:  824~960/1710-1990/2170MHz
  • V.S.W.R: 2.0:1
  • Polarization:  Vertical
  • Radiation: omni
  • Antenna type: Colinear
  • Gain:  3dBi
  • Impedance:  50 ohm
  • Max. Power: 50W

Mechanical:

  • Connector: SMA, FME, N…etc (Optional)
  • Cable: RG58/U – white 5meter (customized length)
  • Size: 597mm
  •  Antenna Material: Polyurethane coated glass fiber (Marine white)
  • Operating Temp.:  -40 °C ~ +85 °C
  • Storage Temp.:  -40 °C ~ +85 °C

Mounting:

  • Marine Holder

Made in Taiwan

OEM and ODM orders are welcome

Compliant with RoHS Directive
