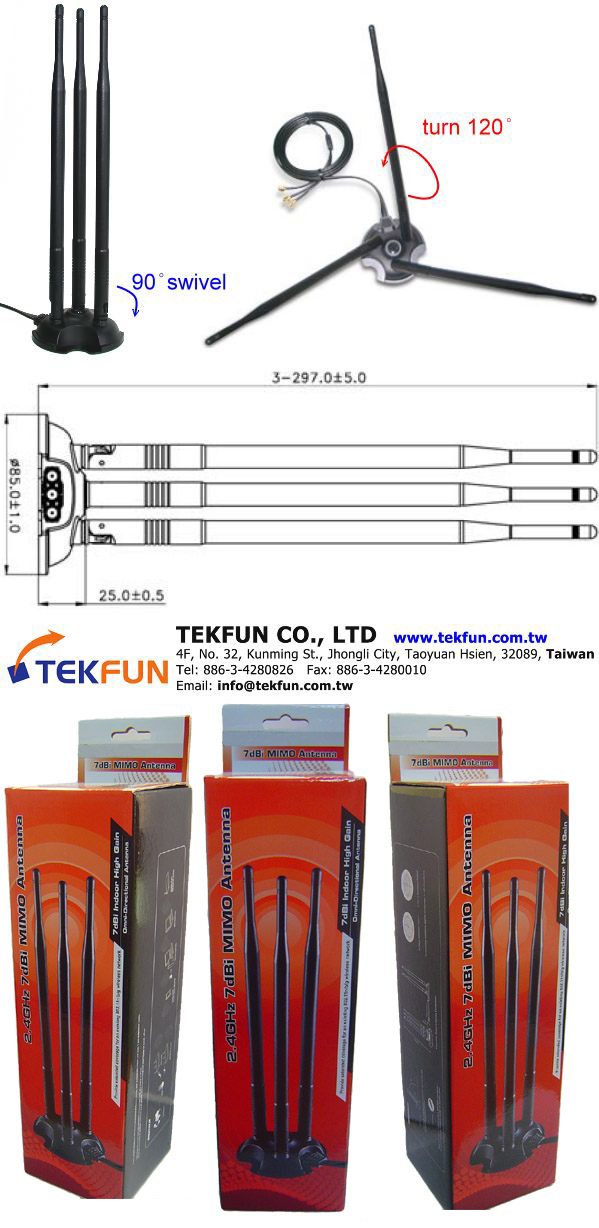

BO-M12-07LL: 2.4GHz MIMO Antenna 7dBi Gain, Lock Swivel design

BO-M12-07LL: 2.4GHz MIMO Antenna 7dBi Gain, Lock Swivel design

Availability： In stock

Model number： E247

Gain

Part no.

Connector (cable)

7dBi

BO-M12-07LL

RP-SMA (M) x 3

Inquiry
Quantity
    Share

    Multiple-input multiple-output (MIMO ANTENNA) for IEEE 802.11 WLAN system



    Electrical:

    • Type: Dipole antenna
    • Frequency: 2.4~2.5GHz
    • VSWR: ≤2.0
    • Impedance: 50ohms
    • Gain: 7dBi
    • Radiation: omni
    • Electrical Wave: 1/4
    • Polarization: Vertical
    • Max Power: 1W

    Mechanical:

    • Antenna length: 297mm
    • Magnetic base: OD85mm
    • Magnetic cable: RG174 1.5meter x RP-SMA male
    • Operating temp.: -30 to +80 degree
    • Storage temp.: -30 to +85 degree
    • Materials: ABS (Antenna Cover)
    • Color: Black

    Mounting:

    • Magnetic Base with RG174 1.5m cable + RP-SMA(M).  3 Antennas x 3 Cables

    Made in Taiwan

    OEM and ODM orders are welcome

    Compliant with RoHS Directive
