Electrical:

• Type: Screw Mount【Car Roof】
• Frequency:

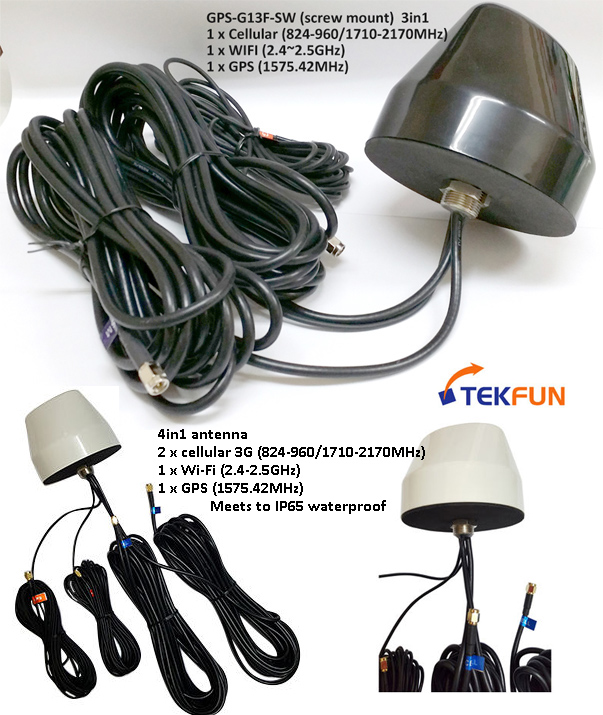

  4in1 antenna
  2 x cellular 3G (824-960/1710-2170MHz)
  1 x Wi-Fi (2.4-2.5GHz)
  1 x GPS (1575.42MHz)
  3in1 antenna
  1 x cellular 3G (824-960/1710-2170MHz)
  1 x Wi-Fi (2.4-2.5GHz)
  1 x GPS (1575.42MHz)
• VSWR: ≤2.0
• Impedance: 50ohm
• Gain: 2.5dBi for cellular, 27dB for GPS
• Radiation: Omni
• Electrical wave: 1/2
• Polarization: Vertical
• Max Power: 50W

Mechanical:

• Antenna Size: 84x106.5mm
• Operating temp.: -30 to +70 degree
• Storage temp.: -35 to +75 degree
• Material: ABS polymer, black pr white color

Mounting

• Screw Mount

Pigtail Cable and connector:

• Cable: CFD200 low loss 5M *1 + RG-174A/U 5M *2  (customized cable length)
• Connector: SMA/M *2 + SMA/M RP *1
• Or cutting open end

Made in Taiwan

OEM and ODM orders are welcome

Compliant with RoHS Directive
