FPCB Adhesive Flexible FPC Antenna for 5GHz. 23.4 x 13mm. Gain: 4dBi

Availability: In stock

Model number: FX-N05

frequency

Part no.

5GHz

FX-N05

Inquiry
Quantity

Electrical:

  • Type: FPC Flexible antenna
  • Frequency: 5.15~5.825GHz
  • VSWR: ≤2.0
  • Impedance: 50ohms
  • Gain: 3-4dBi
  • Radiation: Omni-directional
  • Polarization: Linear
  • Electrical wave: 1/2
  • Max Power: 2W

Mechanical:

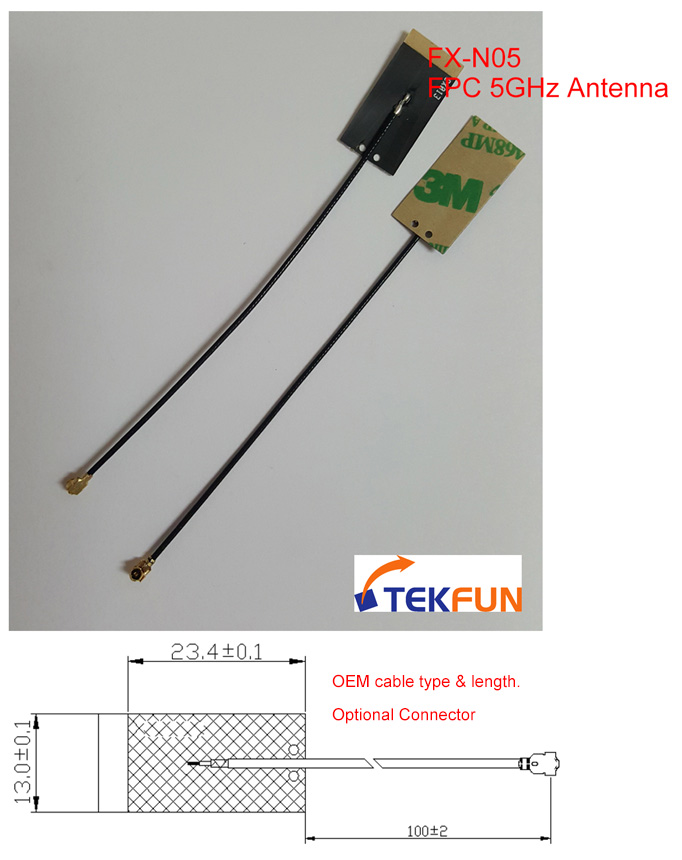

  • Antenna Size: 23.4 x 13mm
  • Operating temp.: -40 to +85 degree
  • Storage temp.: -40 to +85 degree
  • Materials: Flexible Polymer
  • Color: Black

Mounting:

  • with cable and connector

Pigtail Cable and connector:

  • Available cable: RG178, OD1.13, OD0.81,OD1.32, OD1.37...etc
  • Connector: iPex, murata, MMCX, MCX, SMA...etc
  • Or Soldering OPEN end

Made in Taiwan

OEM and ODM orders are welcome

Compliant with RoHS Directive
